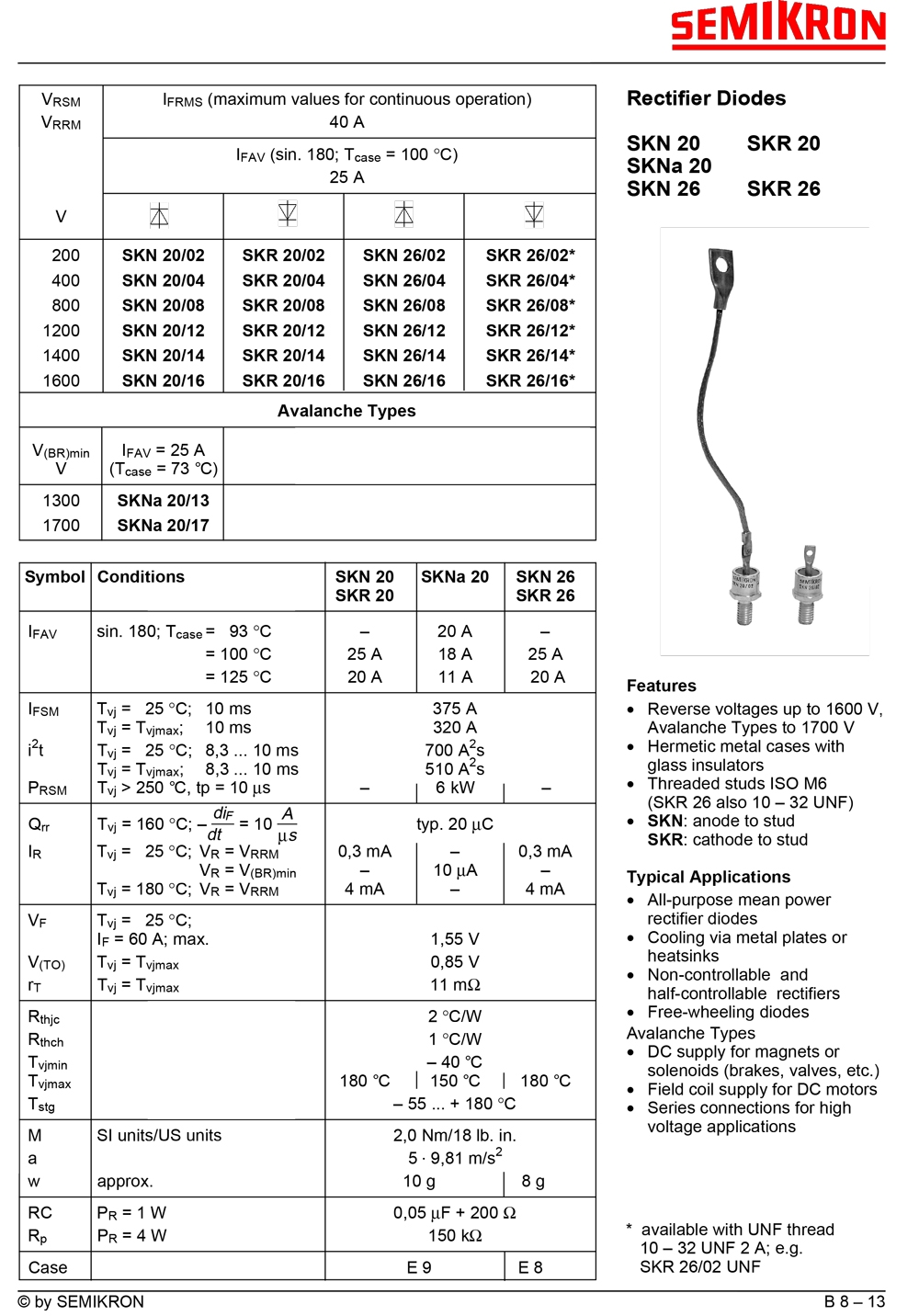

Features
· Reverse voltages up to 1600 V, Avalanche Types to 1700 V

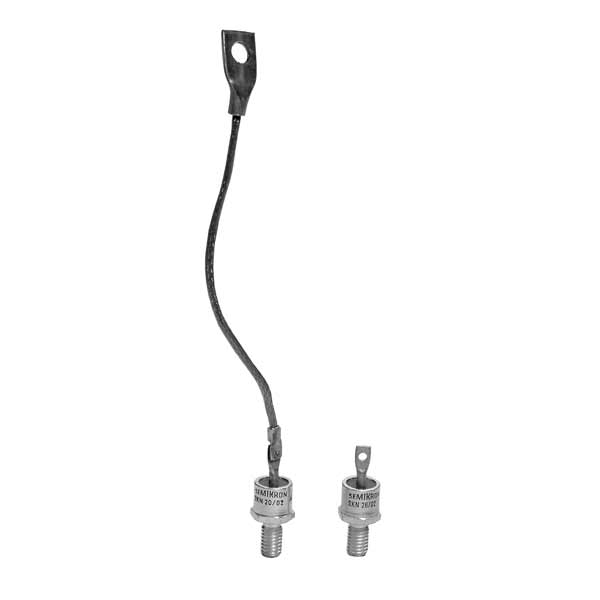

· Hermetic metal cases with glass insulators
· Threaded studs ISO M6 (SKR 26 also 10 – 32 UNF)
· SKN: anode to stud SKR: cathode to stud

Typical Applications
· All-purpose mean power rectifier diodes
· Cooling via metal plates or heatsinks
· Non-controllable and half-controllable rectifiers
· Free-wheeling diodes Avalanche Types
· DC supply for magnets or solenoids (brakes, valves, etc.)
· Field coil supply for DC motors
· Series connections for high voltage applications
