Features
· MOS input (voltage controlled)
· N channel, homogeneous Si
· Low inductance case
· Very low tail current with low temperature dependence
· High short circuit capability, self limiting to 6 * Icnom
· Latch-up free
· Fast & soft inverse CAL diodes8)
· Isolated copper baseplate using DCB Direct Copper Bonding Technology
· Large clearance (9 mm) and creepage distances (13 mm).

Typical Applications
· Switched mode power supplies
· Three phase inverters for AC motor speed control
· Pulse frequencies also above 15 kHz

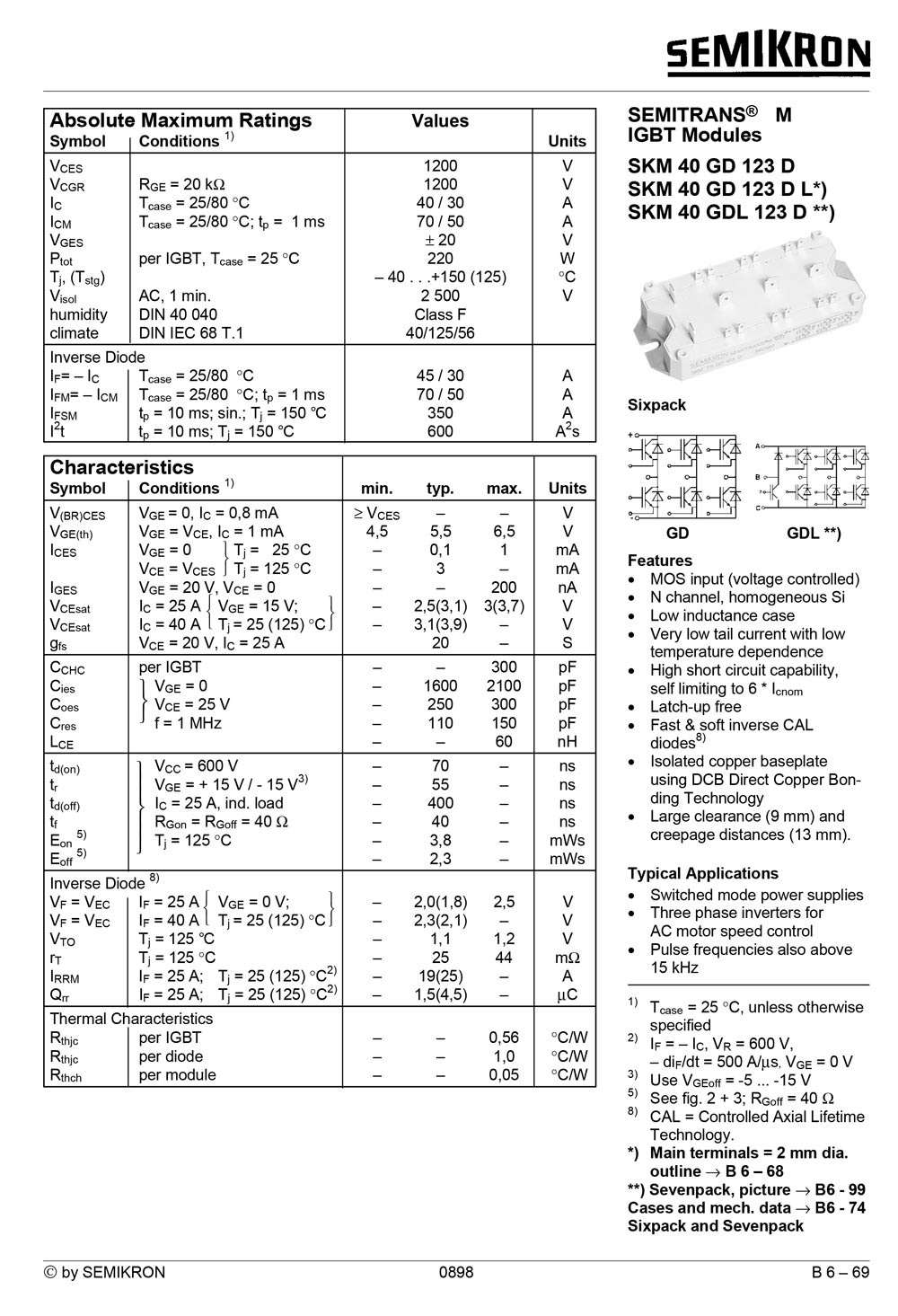

Descargar Ficha Técnica
