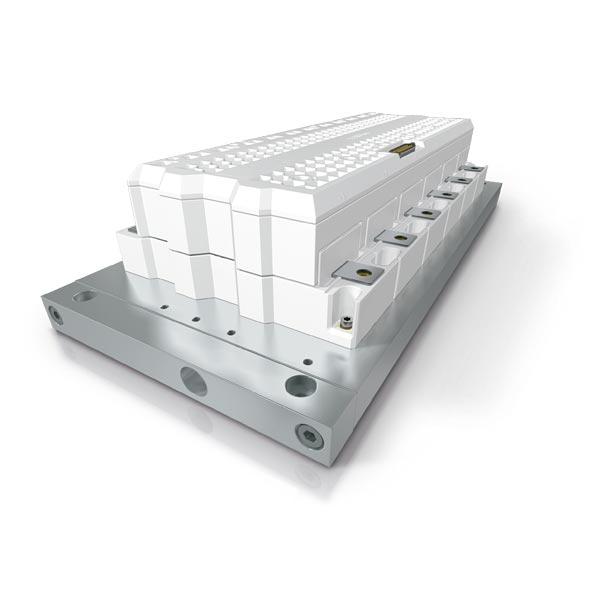

SKiiPPACKâ
SK integrated intelligent Power PACK 3-phase bridge with brake chopper (E/A) SKiiP
132 GDL 120 – 412 CTV 7,9) Preliminary Data Case S5

Features
· Short circuit protection, due to evaluation of current sensor signals
· Isolated power supply
· Low thermal impedance
· Optimal thermal management with integrated heatsink
· Pressure contact technology with increased power cycling capability, compact design
· Low stray inductance
· High power, small losses
· Over-temperature protection
1) Theatsink = 25 °C, unless otherwise specified
2) CAL = Controlled Axial Lifetime Technology (soft and fast)
3) without driver
4) Driver input to DC link / AC output to DC link / AC output to heatsink
5) with Semikron-DC link (low inductance)
6) other heatsinks on request
7) C – Integrated current sensors T – Temperature protection V – 15 V or 24 V power supply
9) options available for driver: U – DC link voltage sense F – Fiber optic connector
10) “s” referenced to temperature sensor
11) NPT-technology with homogenous current-distribution
